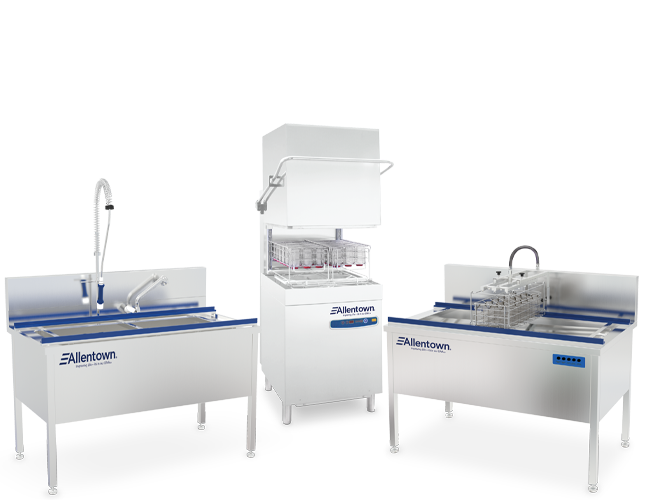

Bottle Processing

BPS-05

BPS-05

Automated Bottle Processing

Extremely High Bottle and Cap Throughput
Designed to completely automate bottle de-capping, emptying, washing, rinsing, filling, and recapping – while simultaneously washing bottles and sipper tube caps – the BPS-05 Automated Bottle Processing System from Allentown provides an extremely high throughput of up to 720 bottles and sipper tube caps per hour (1440 items / hour).

Features and Benefits
  • Completely automated bottle de-capping, emptying, washing, rinsing, filling and recapping
  • Simultaneous washing of bottles and sipper tube caps
  • High throughput of up to 720 bottles and sipper tube caps per hour (1440 items / hour)
  • Processes one 18-bottle basket per cycle
  • Dedicated wash and rinse nozzles
  • Ability to process 250 ml, 350 ml, 450 ml and 700 ml bottles
  • PLC controls with touchscreen interface
  • Clean / dirty barrier compatible
  • Viewing windows for operator observation and maintenance access
  • Compartmental design for ease of transport and installation
  • Compact footprint
  • Steam or electric heating
  • Overall dimensions: 3800 x 2510 x 1365 (mm) / 149.61 x 98.82 x 53.74 (in)

All dimensions shown (Width x Height x Depth)

Download Data Sheet

BW-75

BW-75

Bottle Washer

Modular Design with The Smallest Possible Footprint
Designed for processing bottles and sipper tubes, the BW-75 Bottle Washer from Allentown is able to process two 18-bottle crates, or up to 94 sipper tubes, in one cycle – all while occupying the smallest possible footprint. The BW-75 has a modular design that can be used in conjunction with bottle de-capping / emptying and filling/recapping modules. Most importantly – it is clean / dirty barrier compatible with interlocking, manually operated doors. Optional dedicated wash nozzles can also be provided.

Features and Benefits
  • Designed for processing bottles and sipper tubes
  • Ability to process two 18-bottle crates or up to 94 sipper tubes in one cycle
  • Clean / dirty barrier compatible with interlocking, manually-operated doors
  • Independent wash and rinse circuits
  • Touch pad control panel with status display
  • Dedicated wash nozzles option
  • Four user-selectable cycles
  • Highly-efficient wash cycle
  • Break tank design for rinsing at constant temperature and pressure
  • Small footprint
  • Modular design which can be used in conjunction with bottle de-capping / emptying and filling / recapping modules
  • Overall dimensions – CE version:
    • 890 x 2283¹ x 820 (mm) / 53.04 x 89.90¹ x 32.30 (in)
  • Overall dimensions – UL version:
    • 1140 x 2283¹ x 820 (mm) / 44.88 x 89.90¹ x 32.30 (in)
  • Usable chamber dimensions:
    • 505 x 380 x 540 (mm)/19.88 x 14.96 x 21.26 (in)

All dimensions shown (Width x Height x Depth)
¹Height includes optional exhaust fan

Download Data Sheet

BW-65

BW-65

Bottle Washer

Modular Design with The Smallest Possible Footprint
Designed for processing bottles and sipper tubes, the BW-65 Bottle Washer from Allentown is able to process two 18-bottle crates, or up to 94 sipper tubes, in one cycle – all while occupying the smallest possible footprint. The BW-65 also has a modular design that can be used in conjunction with bottle de-capping / emptying and filling/recapping modules, independent wash and rinse circuits and a dedicated wash nozzles option.

Features and Benefits
  • Designed for processing bottles and sipper tubes
  • Ability to process two 18-bottle crates or up to 94 sipper tubes in one cycle
  • Independent wash and rinse circuits
  • Dedicated wash nozzles option
  • Touch pad control panel with status display
  • Four user-selectable cycles
  • Highly-efficient wash cycle
  • Break tank design for rinsing at constant temperature and pressure
  • Small footprint
  • Modular design which can be used in conjunction with bottle de-capping / emptying and filling / recapping modules
  • Overall dimensions – CE version:
    • 740 x 1990¹ x 870 (mm) / 27.94 x 78.34¹ x 34.25 (in)
  • Overall dimensions – UL version:
    • 625 x 2060¹ x 1010 (mm) / 24.59 x 81.10¹ x 39.76 (in)
  • Usable chamber dimensions:
    • 540 x 380 x 505 (mm) / 21.26 x 14.96 x 19.88 (in)

All dimensions shown (Width x Height x Depth)
¹Height includes optional exhaust fan

Download Data Sheet

BE-05/15

BE-05 / 15

Bottle Emptying Modules

Available in 1000 mm or 1400 mm Lengths
Either as a standalone application or integrated with a washer, BE-05 / 15 Bottle Emptying Modules from Allentown offer a wide variety of optional features including a spray wand and a pneumatic-assist de-capper for individual sipper tubes. They are also available in 1000 mm (BE-05) or 1400 mm (BE-15) lengths.

Features and Benefits
  • Standalone application or integrated with washer
  • Standard water faucet
  • Available in 1000 mm (BE-05) or 1400 mm (BE-15) lengths
  • Available with closed cabinet or open base table design
  • Optional pneumatic-assist de-capper for individual sipper tubes
  • Overall Dimensions:
    • BE-05 – 1000 x 1150 x 740 (mm) / 39.37 x 42.28 x 29.13 (in)
    • BE-15 – 1400 x 1150 x 740 (mm) / 55.12 x 42.28 x 29.13 (in)

All dimensions shown (Width x Height x Depth)

Download Data Sheet

BF-05/15

BF-05 / 15

Bottle Filling Modules

Available in 1000 mm or 1400 mm Lengths
Either as a standalone application or integrated with a washer, BF-05 / 15 Bottle Filling Modules from Allentown offer programmable cycles to accommodate a wide variety of bottle sizes and quantities and are available in 1000 mm (BF-05) or 1400 mm (BF-15) lengths. Options include a fixed head for simultaneously filling 18 or 36 bottles, a mobile head for 18-bottle filling, a 3-stage filtration system and an acidifier.

Features and Benefits
  • Standalone application or integrated with washer
  • Available in 1000 mm (BF-05) or 1400 mm (BF-15) lengths
  • Available with closed cabinet or open base table design
  • Three automatic cycles and one manual cycle to allow for multiple filling volumes
  • Optional fixed heads allow for multiple basket sizes
  • Optional mobile head for multiple basket sizes
  • Optional 3-stage water filtration system, cabinet or wall mount
  • Optional acidification system with dosing pump
  • Overall Dimensions:
    • BF-05 – 1000 x 1150 x 740 (mm) / 39.37 x 42.28 x 29.13 (in)
    • BF-15 – 1400 x 1150 x 740 (mm) / 55.12 x 42.28 x 29.13 (in)

All dimensions shown (Width x Height x Depth)

Download Data Sheet
