Phileas®
ASD: Airborne Surface Disinfection
This method of disinfection is part of a complete hygiene process (cleaning, disinfection of specific surfaces and disinfection by air). ASD is a process based on a device-product pair. The machine is associated to the disinfectant for registration and performance testing according to efficacy standards.
Most of the disinfectants used are based on hydrogen peroxide or a mixture of hydrogen peroxide and peracetic acid, preferably ready for use. As it is a biocide, its use is highly regulated (European biocidal directive) and must have obtained a MA (Marketing Authorisation) or registration. This authorisation, although it may be valid for contact disinfection, must also indicate a use in ASD.
The NF T72-281 standard version 2014 defines the effectiveness of an ASD process on bacteria, moulds, yeasts, bacterial spores and viruses with an effective single dose. We present a disinfectant that was the subject of these successful tests according to NF T72-281 standard version 2014 with the Phileas® process.
- Budget friendly
- Portable, various sizes for varying applications
- Coverage: 7 to 28,252 ft³ / 0.2 to 800 m³
- Remote operation and alarming capable
- Dry-fogging (or Micro Drop) technology creates very small droplets (5 to 10µm)
- Permits rapid and homogenous evaporation of H2O2
- NF T72-281 (2014) compliant and CE and UL certified
- Not for use in USA, not EPA Approved

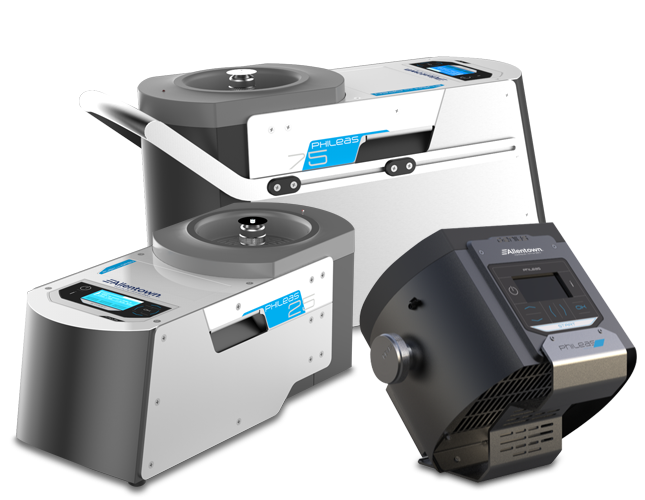

Phileas® Genius
Phileas® Genius offers a minimum size with optimum results. This model has been specifically designed to enter a transfer cylinder connected to a BSC, and can be oriented in 3 positions. Portable, cordless, battery-powered operation, its flow rate is adapted for very small spaces.
Features
- NiMH battery, 2h30 autonomy
- LCD screen
- Multiorientation design
- Programming areas or Multi Diffusion cycles
- Volume of treatment from 7 to 176 ft³ / 0.2 to 5 m³
- Time battery charge: 6 h
- Flow rate: 400 ml / h
- Granulometry: 5 −> 10 microns
- Tank: 250 ml
- Weight: 13 lbs 4 oz / 6 kg
- Dimensions: 11.02 x 8.89 x 10.03 in / 280 x 226 x 255 mm
- Not for use in USA, not EPA Approved
Phileas® 15
Phileas® 15 is a portable, cordless, battery-powered model, with a flow rate and size that are suited for tanks or rack washer treatment.
Features
- NiMH battery, 2 hours autonomy
- LCD screen
- Mobile handle
- Programming areas or Multi Diffusion cycles
- Volume of treatment from 1,766 to 6,357 ft³ / 50 to 180 m³
- Time battery charge: 6 h
- Flow rate: 1,200 ml / h
- Granulometry: 5 −> 10 microns
- Tank: 2 liters
- Weight: 24 lbs 4 oz / 11 kg
- Dimensions: 17.36 x 10.94 x 11.57 in / 441 x 278 x 294 mm
- Not for use in USA, not EPA Approved
Phileas® 25
Phileas® 25 is designed with a minimum size for small volume treatment. This model can be used on mains power or with optional battery, is portable, and has a flow rate adapted for very small spaces.
Features
- Dual Power: mains power or battery (as option: NiMH battery, 2h30 autonomy)
- LCD screen
- Incorporated ergonomic carrying handles
- Programming areas or Multi Diffusion cycles
- Integrated, easy accessible, liquid container
- Volume of treatment from 35 to 1,412 ft³ / 1 to 40 m³
- Time battery charge: 6 h
- Flow rate: 700 ml / h
- Granulometry: 5 −> 10 microns
- Tank: 500 ml
- Weight: 11 lbs / 5 kg
- Dimensions: 18.70 x 8.38 x 7.55 in / 475 x 213 x 192 mm
- Not for use in USA, not EPA Approved
Phileas® 75
Phileas® 75 is equipped with wheels and a retractable handle, providing easy mobility. This model also provides added diffusion capacity due to its 2 liter (0,53 gallon) container, and offers a high diffusion capability appropriate for average size rooms and volumes.
Features
- Mains power, retractable cord
- Telescopic handle, and 2 wheels
- LCD screen
- Specific liquid usage indicator
- Programming areas or Multi Diffusion cycles
- Balance
- Volume of treatment from 353 to 5,297 ft³ / 10 to 150 m³
- Flow rate: 1,200 ml / h
- Granulometry: 5 −> 10 microns
- Tank: 2 liters
- Weight: 17 lbs 10 oz / 8 kg
- Dimensions: 23.07 x 12.75 x 8.26 in / 586 x 324 x 210 mm
- Not for use in USA, not EPA Approved
Phileas® 250
Phileas® 250 offers power diffusion as a result of double heads and a high flow rate. Designed for maximum manoeuvrability and mobility combined with robustness, this model has been developed for large volume uses and multiple rooms.
Features
- Mains power, retractable cord
- Robust ergonomic handles and wheels
- LCD screen
- Liquid usage indicator
- Compartment to place the chemical bottle
- Programming areas or Multi Diffusion cycles
- Balance
- Minimum maintenance
- CE and UL certified
- NFT 72-281 (v 2014) compliant
- Volume of treatment from 3,531 to 28,252 ft³ / 100 to 800 m³
- Flow rate: 3,000 ml / h
- Granulometry: 5 −> 10 microns
- Bottle capacity: 10 liters
- Weight: 55 lbs 2 oz / 25 kg
- Dimensions: 32.48 x 31.96 x 9.84 in / 825 x 812 x 250 mm
- Not for use in USA, not EPA Approved
All Dimensions Shown (Width x Height x Depth)
O2SAFE® 7.4
A ready-to-use disinfectant that is effective against a broad range of microorganisms, NF T72-281 (2014) compliant (tested with Phileas® technology), and free from additives. After disinfection, the product is entirely degraded into free oxygen molecules and water, with no residue.
- Effective against a broad range of microorganisms
- Ready-to-use, stabilization without additive, 2-year shelf life
- Non-corrosive, no residue
- Classified as irritant, not toxic, with no transport classification (Biocidal Product Regulation EU 528/2012)
- Hydrogen peroxide (n° CAS 7722 84 1): 7.4%
- NF T72-281 (2014) compliant
- Not for use in USA, not EPA Approved
MyPhileas®
MyPhileas® is a tablet-based application that provides the user with control and monitoring capabilities without the need to be in the room. Disinfection can be programmed, controlled and monitored via Wi-Fi communications, while status reporting can be collected and reviewed on the tablet or transferred to a computer.
- Remote control and monitoring of devices via WiFi
- Program and/or start disinfection from outside the room
- View a display of the running process
- Generate and export reports for diffusion cycles
- App is available in different languages
The difference is in the details. Take a closer look.
With more than 50 years worth of experience and expertise in design, engineering and manufacturing, Allentown solutions are not only crafted to perfection, they are also meticulously documented to provide users with all of the information needed to maximize their value. Take a closer look by downloading the data sheet.
Not for use in USA, not EPA Approved
