Flexibility and Usability

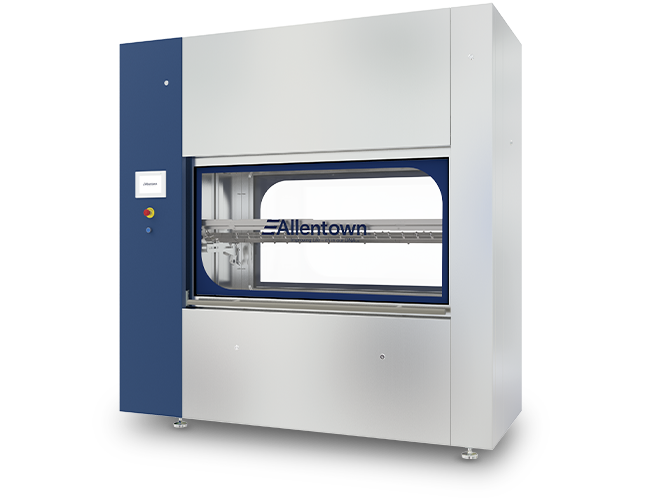

Designed for high throughput washing of various sizes and types of animal housing, bottles and miscellaneous equipment using steam or electric heating, the CW-185 Cabinet Washer from Allentown is the pinnacle of flexibility and usability, capable of performing a wide variety of wash / rinse cycle types and processing up to five 18-bottle crates and the associated caps per cycle. In addition, the CW-185 has dedicated wash and rinse circuits, dedicated wash and rinse nozzles for bottle and sipper tube cycles, and a second shelf for maximum capacity and high throughput. This second shelf, as well as the middle set of wash / rinse arms, is removable for washing larger materials.

Features and Benefits

• Patented, two wash tank cabinet washer offering unique cycle capabilities
• Designed to wash various sizes of animal housing, bottles, and miscellaneous items
• Available with a single door, or interlocked double doors for pass-through applications
• PLC with touchscreen controls allowing for multiple programming options
• Wash 90 bottles and caps per load, 1350 per hour
• Wash up to 36 cages per load, 479 cages per hour
• Separate recirculating rinse and final rinse phases
• 3-tank capability for separate cycle phases
• Unmatched cycle flexibility (wash/rinse; wash/wash/rinse; wash/thermal disinfection/rinse; etc.)
• Upper and lower slide out shelves for ergonomic loading/unloading
• Built-in presentation tray with 12 independently adjustable zones
• Removable wash/rinse arms for ease of cleaning
• Removable center arms for large item processing
• Meets AK KAB and AAALAC requirements
• Dedicated wash and rinse nozzles for bottle washing
• Large cabinet washer ideal for high throughput applications and emergency rack washer backup
• Steam or electric heating
• Overall dimensions:
  • 2216 W x 2430 H x 924 D (mm)
  • 87.24 W x 95.67 H x 36.38 D (in)
• Usable dimensions:
  • 1540 W x 765 H x 673 D (mm)
  • 60.63 W x 30.12 H x 26.50 D (in)

Download Data Sheet

The difference is in the details. Take a closer look.

Allentown solutions are not only crafted to perfection, they are also meticulously documented to provide users with all of the information needed to maximize their value. Take a closer look by reviewing the materials below.

Ideal for Daily Washing and Emergency Back Up
Designed for high throughput washing of animal housing, bottles and miscellaneous equipment in a compact footprint, the CW-135 Cabinet Washer from Allentown has dedicated wash and rinse circuits, a break tank design for rinsing at constant temperature and pressure and programmable cycles that include wash / rinse temperatures and wash / rinse / neutralization phase times. This mid-sized cabinet washer is ideal for daily washing and emergency back up.

Features and Benefits

• Designed to wash animal housing, bottles, and miscellaneous items
• Electric heating
• Dedicated wash and rinse circuits
• Break tank design for rinsing at constant temperature and pressure
• Touch pad control panel with status display
• Programmable cycles including wash/rinse temperatures and wash/ rinse/neutralization phase times
• Mid-sized cabinet washer ideal for daily washing and emergency back up
• High throughput
• Easy-to-clean stainless steel screens
• Overall dimensions – CE version:
  • 1500 W x 2180* H x 915 D (mm)
  • 59.06 W x 74.29* H x 36.02 (in)
• Overall dimensions – UL version:
  • 1750 W x 2180* H x 915 D (mm)
  • 68.90 W x 74.29* H x 36.02 (in)

* For optional exhaust fan, add 98 mm | 3.86 in

Download Data Sheet

The Smallest Possible Footprint
Designed to wash animal housing, bottles and miscellaneous equipment in the smallest possible footprint, the CW-85 Cabinet Washer from Allentown has dedicated wash and rinse circuits, a break tank design for rinsing at constant temperature and pressure and programmable cycles that include wash / rinse temperatures and wash / rinse neutralization phase times.

Features and Benefits

• Designed to wash animal housing, bottles and miscellaneous items
• Electric heating
• Dedicated wash and rinse circuits
• Break tank design for rinsing at constant temperature and pressure
• Touch pad control panel with status display
• Programmable cycles including wash/rinse temperatures and wash/ rinse/neutralization phase times
• Compact footprint
• Easy-to-clean stainless steel screens
• Overall dimensions – CE version:
  • 990 W x 2180* H x 910 D (mm)
  • 38.98 W x 75.59* H x 35.83 D (in)
• Overall dimensions – UL version:
  • 1240 W x 2180* H x 910 D (mm)
  • 48.82 W x 75.59* H x 35.83 D (in)

* For optional exhaust fan, add 33 mm | 1.30 in

Download Data Sheet
