TW-85 / 95

Tunnel Washers

Modularity for Flexible Configurations

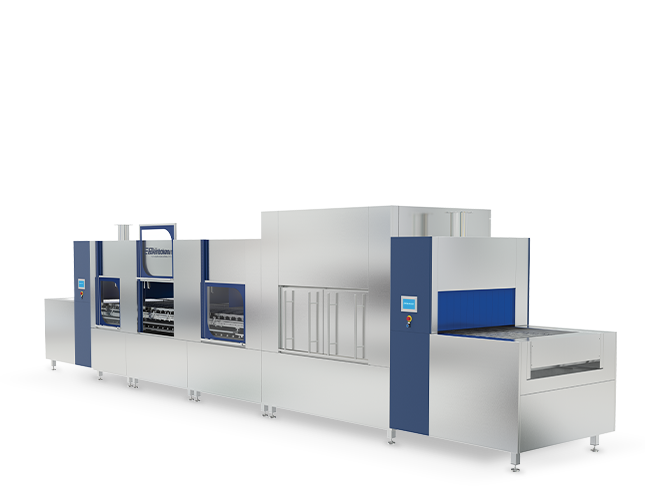

Available with two different belt widths and with steam or electric heating, the overall modularity of the TW-85 / 95 Tunnel Washer series from Allentown provides for flexible configurations, the ability to process a wide variety of housing and lab equipment types and the capacity to work with or without automation.

Features and Benefits
  • Available in 770 mm / 30.31 in and 1050 mm / 41.34 in belt widths
  • Steam or electric heating
  • Flexible design options built from modules - Load, Pre-wash, Wash, Pre-rinse, Pre-Rinse/Rinse, Heated Air Blowing, Heated Air Blowing/Drying, Unload
  • Suitable for manual or automated applications
  • Ability to process rodent caging, bottles and miscellaneous items
  • Insulated body to ensure low noise level and reduce heat loss
  • Window access doors on wash and rinse modules for visual inspection and ease of maintenance
  • Removable stainless mesh chamber filters in washing module, as well as cylindrical pump filters in pre-wash and wash modules
  • Touchscreen with PLC controls on clean and dirty sides
  • Overall Dimensions:
    • TW-85 – 1270 W x 2650 H x 10000* L (mm) | 50.00 W x 104.33 H x 393.70* L (in)
    • TW-95 – 1500 W x 2650 H x 10000* L (mm) | 61.02 W x 104.33 H x 393.70* L (in)

* Length of the tunnel washer varies based on which modules are chosen


The difference is in the details. Take a closer look.

With more than 50 years worth of experience and expertise in design, engineering and manufacturing, Allentown solutions are not only crafted to perfection, they are also meticulously documented to provide users with all of the information needed to maximize their value. Take a closer look by downloading the data sheet.

Download Data Sheet
